Model NO.:
TL-VDQ5600+BJ-K5600+TC-Q5600
Price:
USD 100.00-300.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
2000 set / Month
Country of Origin:
GUANGZHOU,SHENZHEN,HONGKONG
Quantity:
  • Type:Audio Conference System
  • Type:Network Conference System
  • Type:Video Conference System
  • Simultaneous Interpretation:Yes
  • Place of Origin:CN;GUA
  • Function:conference system
  • Brand Name:GONSIN
  • Model Number:TL-VDQ5600+BJ-K5600+TC-Q5600
Product Description

 TL-VQ56004200



Central Control Unit  TL-ZB4



Main Functions

•In compliance with IEC60914 international standard
•With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor, CD sound quality.
•Supports 48KHz audio sample rate, acoustic frequency response can up to 20Hz~20KHz.
•Black tempered glass panel design, simple and high-end design. All the function divisions are clearly layout and easy to operate.
•The sever comes with built-in OLED panel to display system status, active mic, speaking mode.
•Language supports Chinese/ English. Russia, Spanish can be customized.
•Navigation knob for more convenient operation and management
•4 route port to connect conference units, the system has auto-repair function, support hot plug- and-play.
•One central control unit is able to accommodate 60-70 microphones. By cascading extension units,
•the system can support upto 4096 conference units.
•Universal voltage power switch for wider usable range and sufficient power supply.
•Support USB auto recording: after the front panel is inserted U disk, audio recording can be set automatically or manually. The recording status can be displayed in real time.
•Supports automatic video tracking (SD and HD), with preset panoramic position. Built-in 4×1 SD
•video matrix, to support SD video tracking without adding more device
•Input port for external audio signal: for alarm audio, PA, and other audio systems, the conference units can output audio signals synchronously.
•Internal clock and calendar, it will be displayed on central control unit, conference units.
•Built-in auto-detection fo conference units; before conferences, self-test can be run for each conference units.
•TCP/IP PC communication between central control unit and PC, which can achieve control
•management, remote fault diagnosis and remote update.
Stand-alone Mode Functions:
•ID number writing: the conference system supports automatically or manually assign ID to the corresponding equipment.
•All or individual units' VOX sensitivity are adjustable (apply to 5600 series)
•LCD screen contrast of Unit is adjustable (apply to 4200 series)

•Speaking mode: Operator, Auto, FIFO, VOX, request to speak (with software).
•VOX function: in VOX mode, the unit will be activated when user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable ( 6-180 seconds).
•1-4 delegate unit can be used simultaneously (except chairman unit); chairman/vice chairman unit
are not subject to active mic limit, it’s allowed to open at any time.
•The system can have multiple chairman units; delegate unit can be set as vice-chairman units. There are unlimited chairman and vice-chairman units.
Extended functions under PC and software control
•Register function and real-time participants statistics.
•Centralized conference management, operator can allow or reject delegate request to talk.
•Speaking time limit can be preset for conference units; After the speaking time is up, the conference unit will be off.
•Conference audio recording and video recording(need audio video capture card)
•Delegate unit can be set to be vice-chairman units by software; vice-chairman unit is not subject to active mic limit.
•Support management software dual-system hot backup function; One control computer can be set
as backup and connect to the system; if the current computer has faults, the backup computer can be automatically hosted to ensure the smooth and continuous meeting.
•Conference management software can be customized.

Based on functions of Central Control Unit TL-Z4, Central Control Unit TL-ZB4 has functions below:
Extended functions under PC and software control

  • Voting: Yes, No, Abstain . Vote counting and result display are enabled automatically by PC
  • Single-choice and multiple-choice voting
  • First key-press and final key-press voting
  • Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
  • 4-key evaluation: Good, Fair, Poor, Abstain.
  • Utilize multi-level error correction and data encryption technique to ensure information security.
  • Customized voting options and voting methods, support customized language mode or display screen.
  • QQ20150617101146.jpg

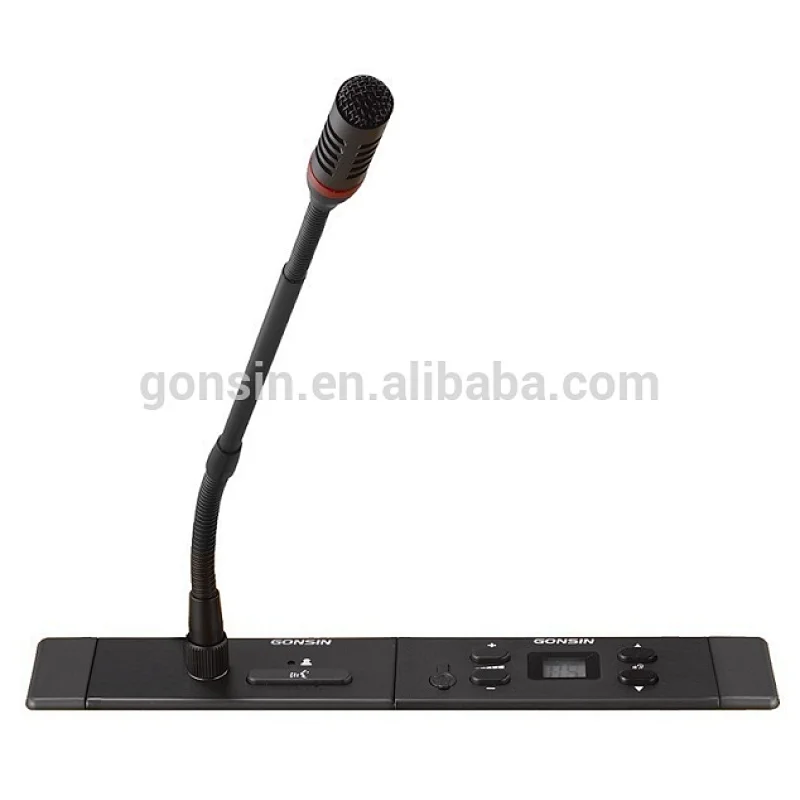

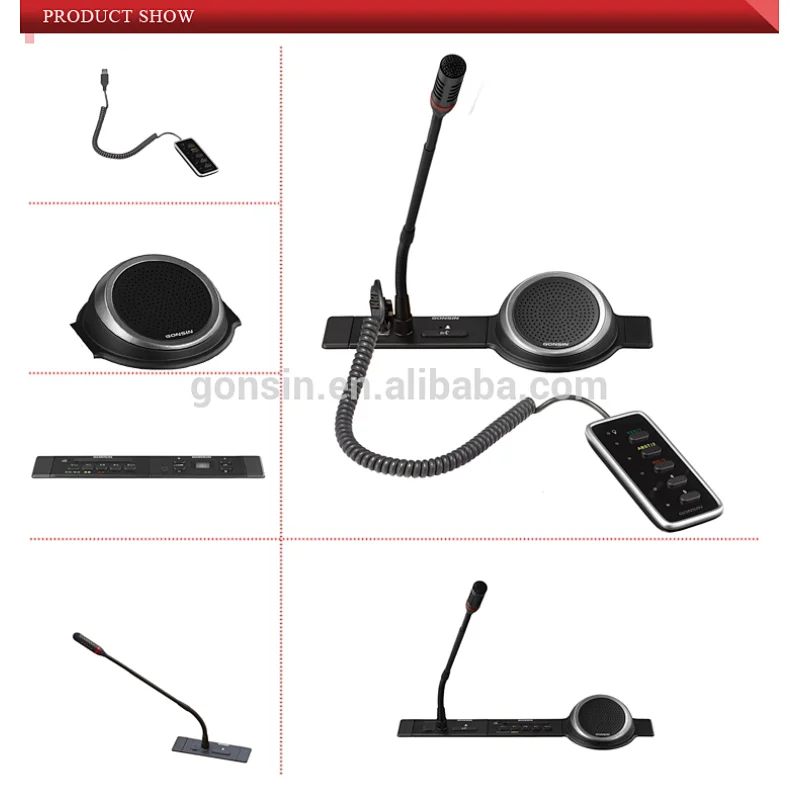

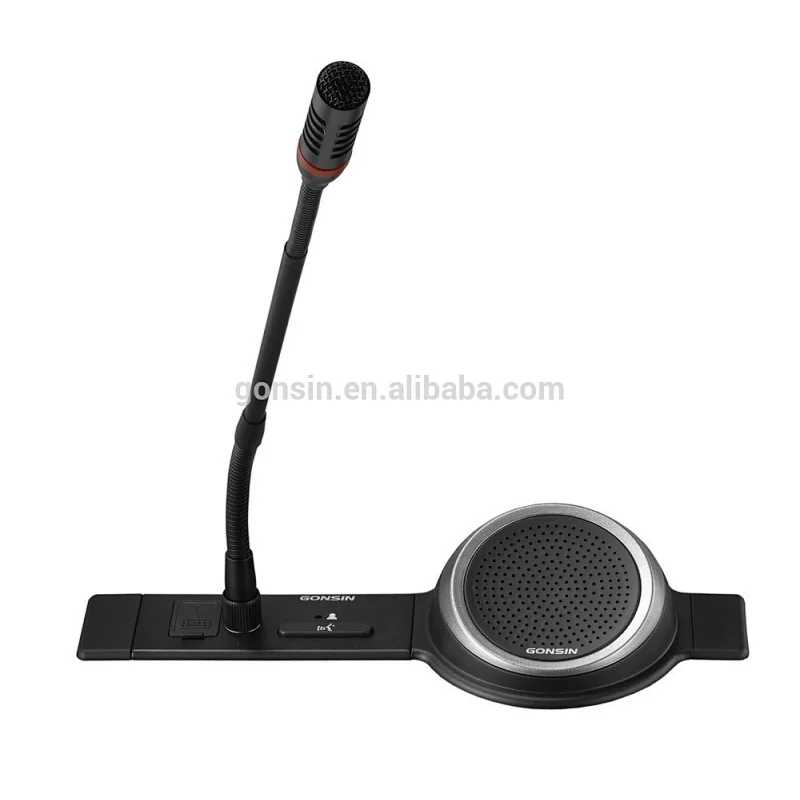

  • Discussion Unit TL-VDQ5600/ TL-VXQ5600
  •

  •

  • Delegate discussion unit (TL-VDQ5600) allows the delegate to talk, request to talk, and register attendance.  1 to 4 delegate microphones can be active simultaneously. Built-in loudspeaker automatically mutes when the microphone is turned on.  Chairman discussion unit (TL-VXQ5600) has the additional priority button to override all active delegate units to control the conference.  Multiple chairman and vice-chairman discussion units can be used in one system, and can be active at any time regardless of preset delegate microphone limit.


    Features:

       Voice-activated microphone mode

      Low susceptibility to mobile phone interference

      Pluggable gooseneck microphone stem

      Waterproof and dustproof design

      Long microphone pick-up range

      Red ring luminant to identify active unit

      Blue LED indicator for chairman or VIP

    Basic functions:

      Microphone mode: VOX/AUTO/FIFO/OPERATOR

      Attendance: registration by keypress or late registration

       LED indicator and MIC light will blink when attendance is to be registered.  LED indicator will light on when attendance is successfully registered.

      VOX sensitivity and mic time-out are adjustable.

      Automatic video tracking, with preset position for panorama view.

    Technical specifications:

      Mounting type: flush mounting

      Frequency response: 50Hz-18KHz

      Sensitivity: -46dB±4dB

      S/N ratio: -95dB

      THD:< 0.3%

      Power input: 24V

     VOX sensitivity: H/M/L (76dB/80dB/82dB)

      VOX auto mic time-out: 20-250 seconds

      Working temperature:  0℃ to 45℃

      Storage temperature:  -20℃ to 50℃

      Mic pickup range: 100-600mm

     Mic stem length: 410mm standard, 310/510mm optional

     Dimensions (WxDxH): 100x40x66mm

     Net weight: 86g



    Handheld Voting Keypad BJ-K5600

    Connecting the discussion unit via RJ-45 port, the handheld voting keypad allows the delegate to register attendance and cast a vote for YES/NO/ABST, evaluation and election.  Votes are counted automatically and the result is shown on display equipment such as large screen, projector/screen and white board. Results can be printed out or saved in CD.


    Features:

      Designed for ease of system expansion

      Handheld unit offers higher level of convenience and privacy

       LED indicators to show working status for voting

       Voting and evaluation options are defined by system software

       30000V ESD protection circuit

       Waterproof and dustproof design

    Basic functions:

      Voting: YES/ABST/NO. Vote count and result display are enabled automatically by PC.

          - Single-choice and multiple-choice voting

          - First keypress and final keypress voting

        Election: elect one or more out of multiple candidates, with 'competitive election', 'equal number election' and 'quick election'.

        Evaluation (opinion polls): Best, Good, Fair, Poor.

     When attendance is registered by IC card, green LED indicator will blink.  For     card error and invalid card, red LED indicator will light on. Green LED indicator will light on after attendance is registered.

         LED indicator will blink to request for voting.  LED indicator will light on for 3 seconds after a voting is casted, and then all LED indicators will be light off.

    Technical specifications:

       Mounting connector: RJ45

       Working temperature: 0℃ to 45℃

       Storage temperature: -20℃ to 50℃

       Dimensions (LxWxH): 120x55x15mm

       Net weight: 105g



    • Channel Selection Unit  TC-Q5600

       The wired flush channel selection unit provides high immunity from interference and high security against unauthorized listening. Each unit comes with headphone jack and volume control so that the delegate can hear any selected channel on a personal headphone, and adjust volume level for comfortable listening.


      Features:

      Simple and stylish look

      30000V ESD protection circuit design

      Waterproof and dustproof design

      Basic functions:

      6 selectable channels for interpretation

      Loudspeaker volume level can be adjusted individually, or centrally by CCU      and displayed on LCD.

      Selected channel number is shown on LCD.

       Technical specifications:

      Mounting type: flush mounting

      Powered: by the central control unit

      Headphone jack: 3.5mm

      Working temperature:  0℃ to 45℃

      Storage temperature:  -20℃ to 50℃

      Dimensions (WxDxH): 100x40x66mm

      Net weight: 62g




    Interpreter Console TC-F06



    Features:

        Digitally-controlledworkstationdesigned for 6-channel simultaneous interpretation system

     LCD screen to display the following information:

        1) Channel selection and confirmation

        2) Incoming/outgoing channel number

        3) All the occupied channels

        4) Channel number of this unit

        5) Previous and present operation time

    Two types of microphone can be used

         Gooseneck microphone

        headset boom microphone

       Built-in loudspeaker with volume level control.  Loudspeaker is automatically switched off when the microphone is turned on.]

       A/B/C pre-select incoming channels for relay interpretation.

       A/B pre-select outgoing channels for normal interpretation and retour interpretation

       Two outgoing channels can be used for normal interpretation and retour interpretation

       Automatic channel interlocking function prevents the interpreters from using the same outgoing channel.

       SLOW key to alert the current speaking delegate to speak slowly.  When the key is pressed, the speaking delegate’s microphone red ring luminant will blink.

       MUTE key to enable a brief muting of the microphone for cough cut.

      Output volume level can be adjusted throught the L/M/H switch

       Multiple interpreter consoles can be interconnected in a daisy-chain


    Technical Specifications:

      Frequency response: 50-18kHz

      Distortion at 1 kHz: < 0.1%

      Channel separation: > 85 dB

      Signal-to-noise ratio: > 90 dB

      Max. input power level: 7.5V

      Operating voltage: 24V

      Power consumption: 2.5W

      Standard microphone stem: 410 mm

      Built-in loudspeaker 8Ω/2W

     128x64 backlit LCD screen

     3/5/10m cable with DB25 connectors

     3.5mm jacks for MIC/REC/Headphone

     Dimensions: 247X145X95mm (W*D*H)

     Weight: 1.2 kg

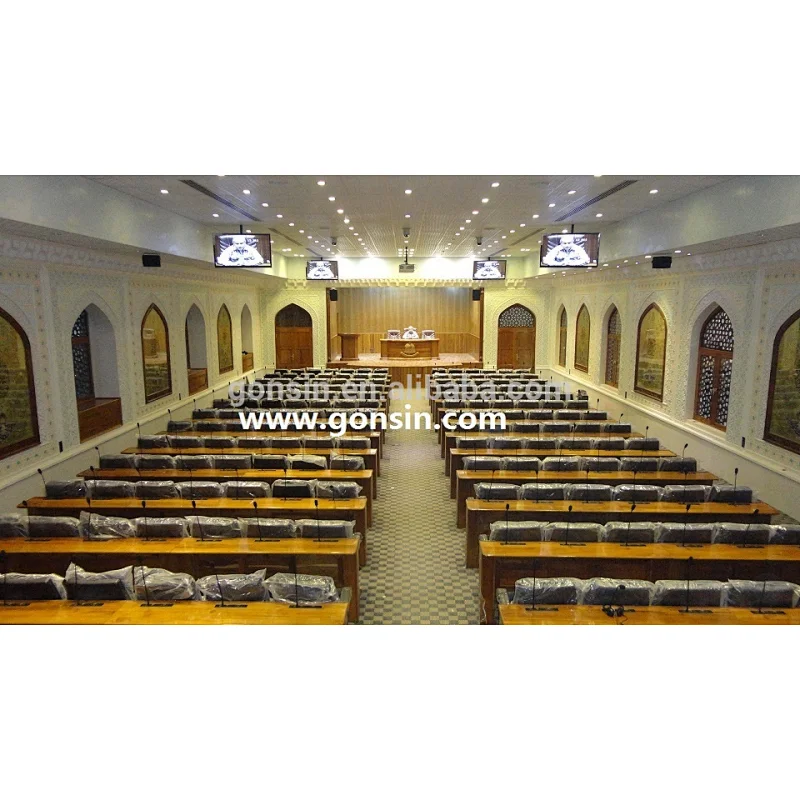

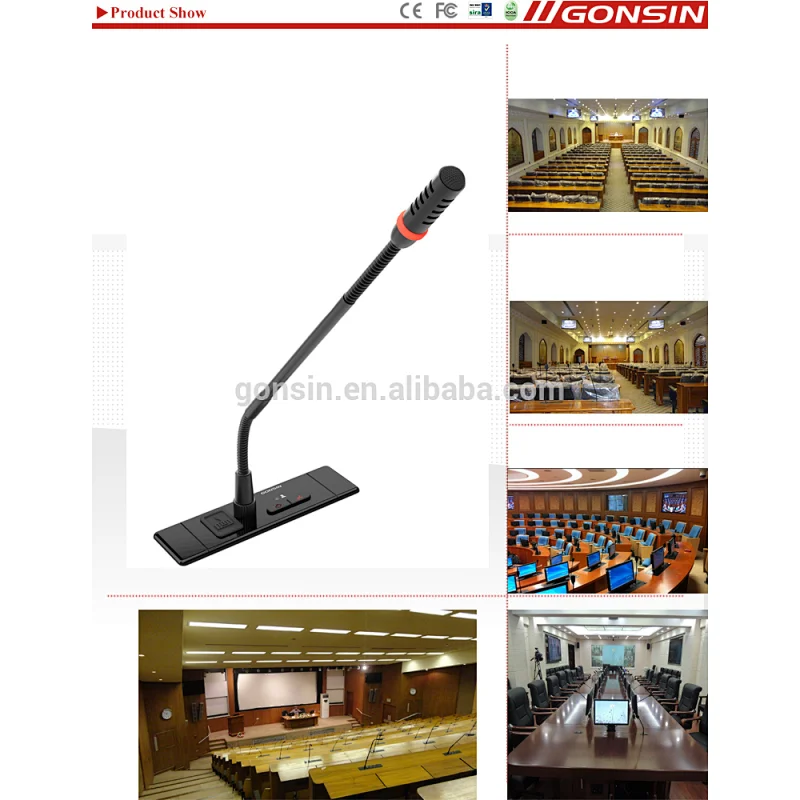

Application
