Model NO.:
TL-5600
Price:
USD 1.00-9999.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Month
Country of Origin:
Guangzhou or Shenzhen or Shunde
Stock Time:
1-2 weeks Day
Quantity:
  • Place of Origin:CN;GUA
  • Simultaneous Interpretation:No
  • Function:Voting
  • Model Number:TL-5600
  • Brand Name:GONSIN
  • Type:Audio Conference System
  • Type:Network Conference System
  • Type:Video Conference System

fully digital audio integrated system conference headphone



 006

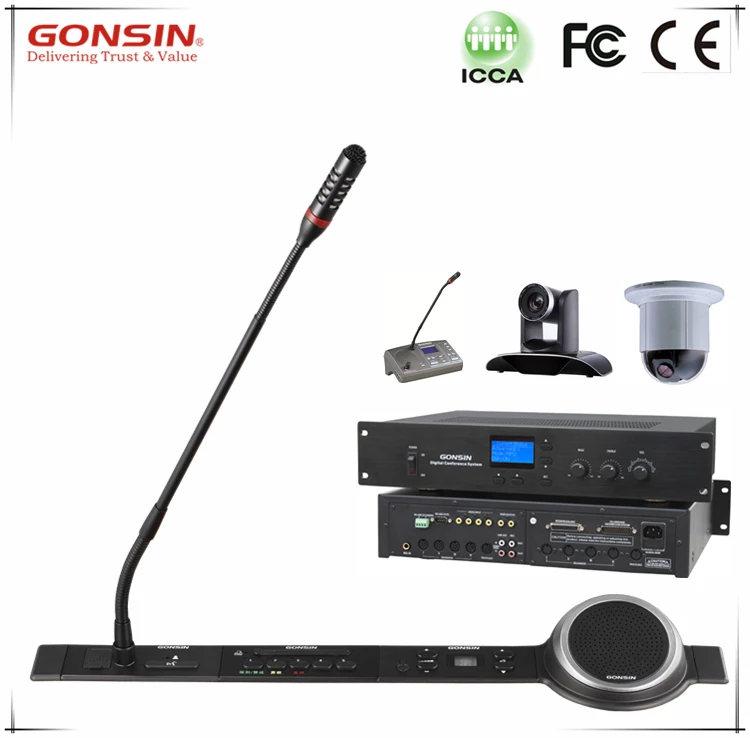

Main Features



Elegant and fashion design Volume of loudspeakers can be set alone or together
Exquisite manufacturing process Multiple chairman or vice chairman units are allowed
Flexible module-based solution Support auto camera tracking function ( SD and HD)
Expansion interface for system upgrading Electret cardioid pickup pattern microphone, rich timbre
LED indicator for working status Pluggable microphone stem with red indicator light ring
Channel, volume and VOX sentitivity displayed on LCD screen Highly resistant to mobile phone interference







System Configuration 1






Product Description





Main Components 1





Centrol Control Unit



 006Discussion Management
Interactive Voting
Simultaneous Interpretation & Language Distribution
Video Tracking
Software Control



Features:



* Confirm to IEC 60914 international standard
* Built-in DSP digital audio processor with feedback prevention function; support 48KHz audio sample
frequency rate
* Built-in backlit LCD screen to display speaking mode, system status, DSP feedback prevention and
other information to make conference management and setting more convenient.
* Automatic video tracking with up to 4 SD cameras with preset position for panorama view; built-in
4×1+1 video matrix, to support SD video tracking without adding more device.
* Support extending HD video camera tracking system, support up to 8 HD dome camera( with adding
video matrix)
* Alarm signal output interface, when the PA alarm system is activated, the unit can output alarm signal;
* VOX sensitivity and mic time-out are adjustable
* All or individual units'VOX sensitivity are adjustable
* 1 to 4 delegate microphones can be activated simultaneously, besides chairman microphone and vicechairman microphone
* Support 6 channels of wired simultaneous interpretation system, unit can be connected to IR
simultaneous interpretation system or FS-FHSS wireless simultaneous interpretation system to
extend more channel





Discussion Unit



 006Mounting typeFlush Mounting / Embedded
Frequency Response 30Hz~20KHz
Sensitivity-46dB±4dB
SNR≥95dB
Max SPL 125 dB (THD<3%)
Dynamic range >85dB
VOX Sensitivity High/Middle/Low(77dB/80dB/82dB)
VOX auto mic time-out6-180 seconds
Microphone stem length410mm(standard)(310mm/510mm optional)
Dimension (L×W×H)
100mm×40mm×60mm
Hole Dimension (L×W)
124±4×33±2 table thickness ≥15mm

* Voice-activated microphone mode
* Low susceptibility to interference from mobile phones
* Pluggable gooseneck microphone stem
* Waterproof and dustproof design
* Long microphone pick-up range
* Red ring luminant to identify active unit
* Blue LED indicator for chairman or VIP





Flush Voting Unit / Embedded Voting Unit

 006Mounting type Flush mounting / Embedded
Poweredby the central control unit
Weight0.08Kg
Dimensions100×40×66mm (W×D×H)
Hole Dimensions 124±4×33±2(L×W)(table thickness≥15mm)
Working temperature 0℃ to 45℃
Storage temperature -20℃ to 50℃
* Simple and stylish design
* LED indicator to show working status for attendance and voting
* Voting and evaluation options are defined by system software
* 30000V ESD protection circuit design
* Waterproof and dustproof design



Interpretation Channel Selection Unit



 006* 6 selectable channels for interpretation
* Interpretation volume level can be adjusted individually, or centrally by CCU
* Selected channel number, volume and VOX sensitivity are shown on LCD
* Rich timbre





Loudspeaker





 006

* Simple and stylish design
* High-definition audio processing
* 30000V ESD protection circuit MIC is turned on

* Loudspeaker volume level can be adjusted individually, or centrally by CCU
* Human-friendly inclination angle, make its performance better





Interpreter Console / Unit



006 Channel6
Frequency response30Hz to 20KHz
Channel separation> 85 dB
Distortion at 1 Khz< 0.1%
Operating voltage24V DC
Power consumption2.5W
Maximum input power level7.5V
Built-in loudspeaker8Ω/2W
Audio input/output2× MIC / 2× REC/2 × Headphone
Standard mic stem length410 mm
Operating temperature0℃to 45
Storage temperature-20℃ to 50℃
LCD screenDimensions: 65mm*32mm
128×64 dot-matrix display
Blue backlit, white letter
Dimensions247×145×95 mm(W×D×H)
Weight1.2kg

Features:

Digitally-controlled workstation designed for 6 or 16-channel interpretation system

* LCD screen to display various information

* Support direct interpretation and relay interpretation

* Support dual mic relay interpretation

* Mic selection function

* L/M/H selectable output volume level

* 3pre-select incoming channels

* Automatic channel interlocking function

* Speaking speed remind function

* Pluggable microphone stem

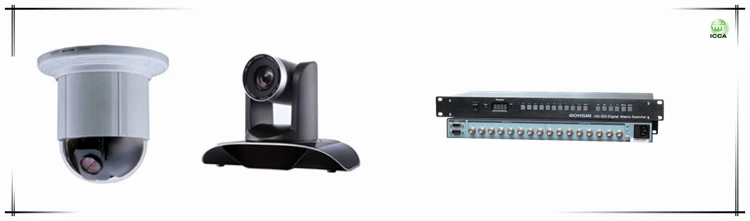

HD Video Camera Tracking System





 006
HD Dome Camera Speed: Maximum:3Gbps
Full HD video, super clear image Compatible bitstream: 143Mbps~3Gbps
Low noise, high SNR Balance ability: 100m @3G(Belden 1694A)
Wide range, high speed, low noise motion Clock recovery: Optional
HD multiple video output formatsSerial control interface: RS232,9- pins female D-type interface
Transparent transmission function of remote controller
Support H.265/H.264 encoding baud rate and protocol baud rate: 9600
Support multiple control protocols Power supply: 100VAC ~ 240VAC, 50/60 Hz



GONSIN HD auto camera tracking system utilizes advanced technology and cowork with conference system. It can automatically track the speaker by the
camera, and comprise of HD video tracking matrix, HD video conference camera
and HD video signal switcher, to realize fluent and clear camera tracking image
