TL-VQ5600 basic discussion system offers a flushmount conference solution for microphone discussion, video tracking and software control. Flush discussion unit allows the delegate to talk and request to talk. Flush loudspeaker can be added to meet the venue needs. Each discussion unit comes with a built-in RJ-45 port which can be used for future expansion. Optional plug-and-play handheld keypad can be connected when attendance registration, voting, election, and evaluation are required.
Flexible module-based solution
Function modules can be stand-alone installed or easily combined to suit the venue environment and meet the customer needs, offering a versatile conference solution.
Smart voice activation mode
The system can be operated under VOX (voice activation) mode so that the microphone is automatically turned on when the delegate speaks. VOX sensitivity can be adjusted to suit conference environment. This microphone mode enables hands-free operation with no need to push the microphone button.
Future-proof system expansion

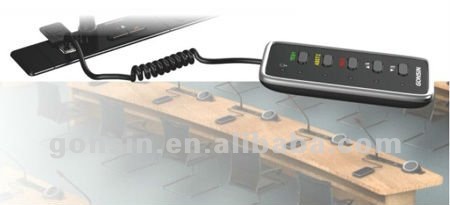

Built-in expansion port of the discussion module is designed for plug-and-play handheld module.
It becomes easier to upgrade the system and extend more features when necessary in the future.
Major system component parts:
central control unit, extension CCU, discussion unit, loudspeaker, connector(conjuntion box), conference management software, dome camera, computer, sound equipment and display equipment.

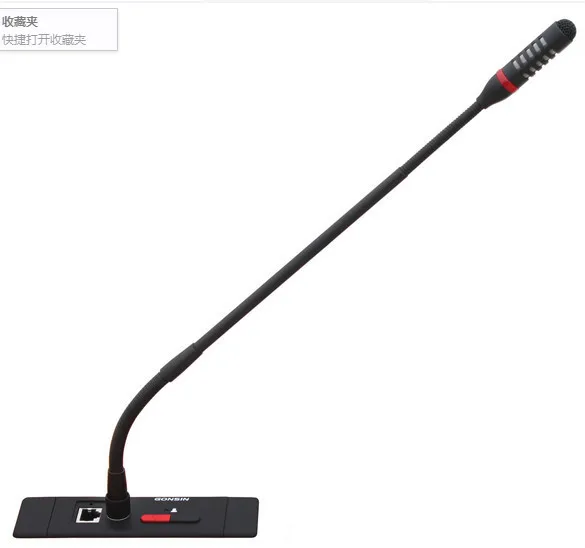

Discussion Unit TL-VDQ5600/ TL-VXQ5600
Delegate discussion unit (TL-VDQ5600) allows the delegate to talk, request to talk, and register attendance. 1 to 4 delegate microphones can be active simultaneously. Built-in loudspeaker automatically mutes when the microphone is turned on. Chairman discussion unit (TL-VXQ5600) has the additional priority button to override all active delegate units to control the conference. Multiple chairman and vice-chairman discussion units can be used in one system, and can be active at any time regardless of preset delegate microphone limit.
Voice-activated microphone mode;
Low susceptibility to mobile phone interference;
Pluggable gooseneck microphone stem;
Waterproof and dustproof design;
Long microphone pick-up range;
Red ring luminant to identify active unit;
Blue LED indicator for chairman or VIP.
Microphone mode: VOX/AUTO/FIFO/OPERATOR;
Attendance: registration by keypress or late registration;
LED indicator and MIC light will blink when attendance is to be registered;
LED indicator will light on when attendance is successfully registered;
VOX sensitivity and mic time-out are adjustable;
Automatic video tracking, with preset position for panorama view.
Mounting type: built.in table
S/N ratio: -95dB
Power input: 24V
VOX sensitivity: H/M/L (76dB/80dB/82dB)
VOX auto mic time-out: 20-250 seconds
Working temperature: 0°C to 45°C
Storage temperature: -20°C to 50°C
Mic pickup range: 100-600mm
Mic stem length: 410mm standard, 310/510mm optional
Dimensions (WxDxH): 100x40x66mm
Net weight: 86g
Q1: What's the product warranty?
A1: 3 years warranty on non-deliberate damage.
Q2: what shall I do if any product problem?
A2: Pls contact Gonsin directly by mail/phone, better provide the pictures and detailed description. Gonsin after-sales are very professional and give you helpful guidence, instruction.
normally customer can solve the problem with our guidence.
Q3: what's Gonsin strenghs in AV industry?
A3: We are manufacturer, price and quality are very good control, so to ensure the best benifit for customers;
We are dedicated to conference system for more than 12 years, and have completed many job reference worldwide.
Our products are CE/FCC certified, and we are ISO certified factory.
