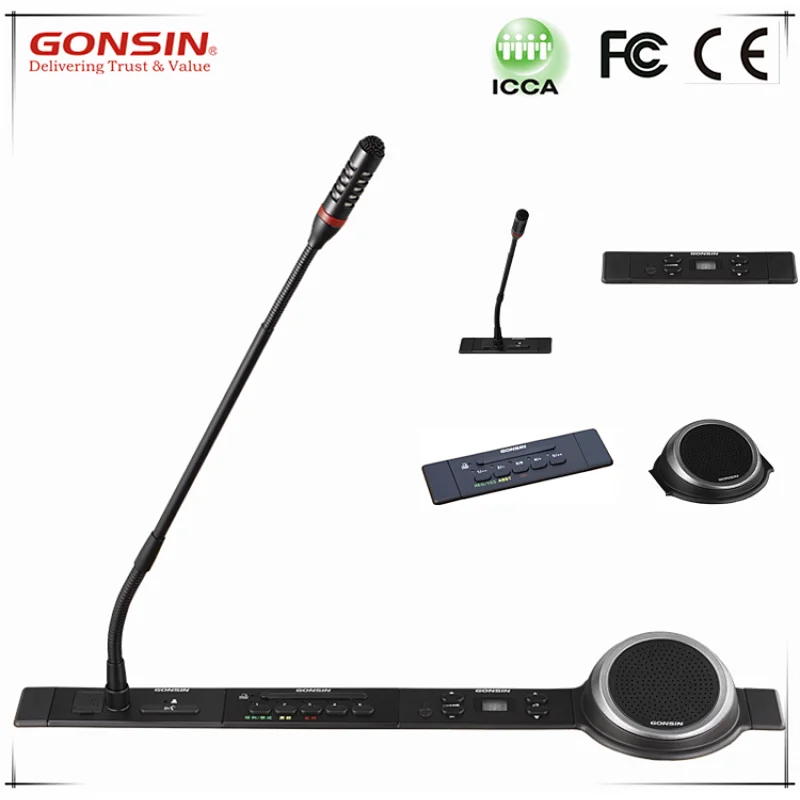

TL-VQ5600+TC-Q5600 Discussion and Interpretation System

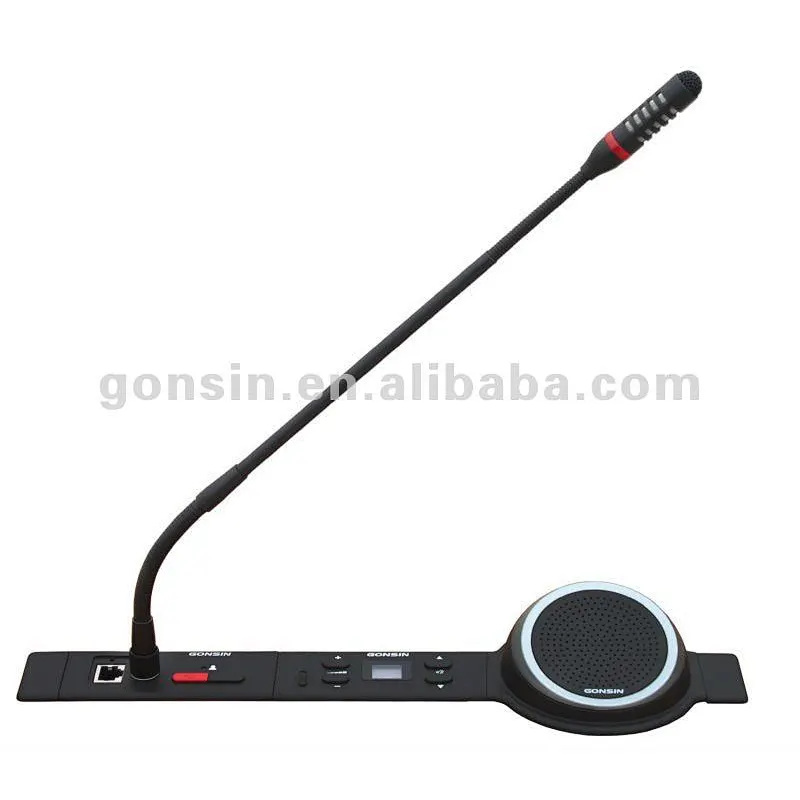

TL-VQ5600+TC-Q5600 discussion and interpretation system offers a flushmount conference solution for microphone discussion, simultaneous interpretation, language distribution, video tracking and software control. Flush discussion unit allows the delegate to talk and request to talk. Flush loudspeaker can be added to meet the venue needs. Flush channel selection unit is available with 6 channels for the delegate to hear the selected channel through a personal headphone. Volume control buttons can be used to adjust the headphone volume level for comfortable listening.
Each discussion unit comes with a built-in RJ-45 port which can be used for future expansion. Optional plug-and-play handheld keypad can be connected when attendance, voting, election, and evaluation are required.
Flexible module-based solution
Function modules can be stand-alone installed or easily combined to suit the venue environment and meet the customer needs, offering a versatile conference solution.
Smart voice activation mode
The system can be operated under VOX (voice activation) mode so that the microphone is automatically turned on when the delegate speaks. VOX sensitivity can be adjusted to suit conference environment. This microphone mode enables hands-free operation with no need to push the microphone button.
Future-proof system expansion
Built-in expansion port of the discussion module is designed for plug-and-play handheld module.
It becomes easier to upgrade the system and extend more features when necessary in the future.
Channel Selection Unit TC-Q5600
The wired flushmount channel selection unit provides high immunity from interference and high security against unauthorized listening. Each unit comes with headphone jack and volume control so that the delegate can hear any selected channel on a personal headphone, and adjust volume level for comfortable listening.
Simple and stylish look
30000V ESD protection circuit design
Waterproof and dustproof design
The CON-5600 connector is designed to connect control units to function modules including discussion unit, channel selection unit, flush voting unit and/or loudspeaker for power supply and communication signals.

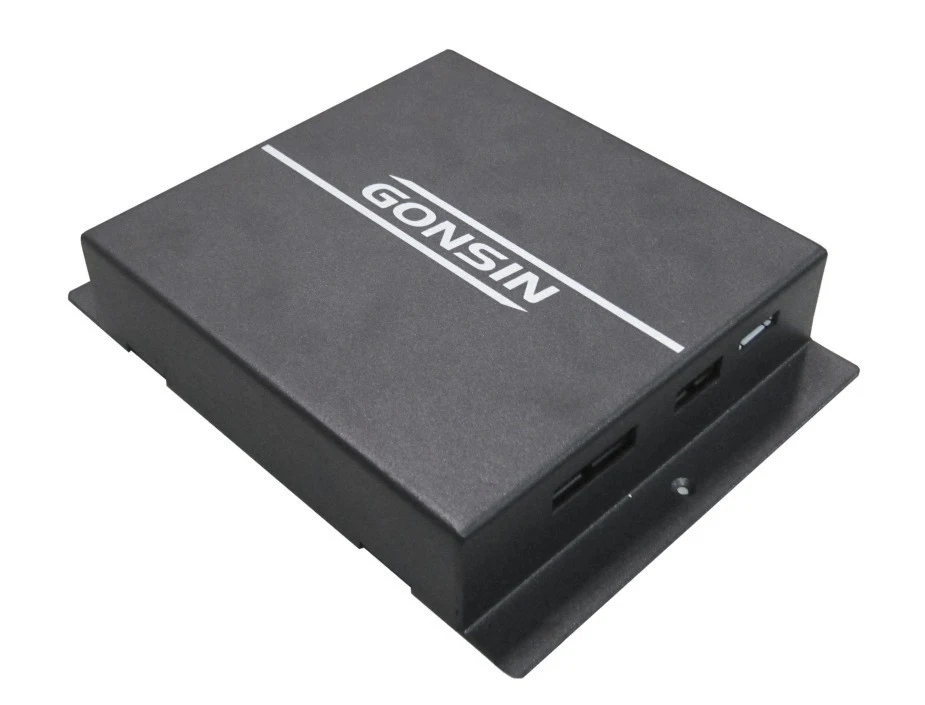

Central Control Unit TC-ZB3
The CCU offers the following functions in stand-alone mode: 1 to 4 delegate microphones can be active simultaneously Selectable microphone mode: VOX/AUTO/FIFO/OPERATOR VOX sensitivity and microphone time-out can be changed Volume level can be adjusted for single or all loudspeakers ID number writing for each unit using LCD on front panel 6 channels are available for simultaneous interpretation Automatic video tracking with preset position for panoramic view Built-in DSP processor for acoustic feedback prevention Built-in treble/bass compensation for better sound quality
The CCU offers more functions under PC/software control: Centralized conference management Operator can allow or reject delegate request to talk Speaking time limit can be preset for conference units Delegate unit can be set to be vice-chairman (VIP) unit Voting, Election, Quick Election, Evaluation Attendance registration using IC cards or REG button Conference audio recording and video recording
GONSIN is Established in 2003, Gonsin Conference Equipment Co.,LTD. is the industry leader in R&D, manufacturing and sales of digital conference equipment. It is a state-level high-tech enterprise in China and a proud member of International Congress and Convention Association (ICCA).
GONSIN is the global provider of complete conference system solutions, including DCS distributed congress system, conference discussion system, interactive voting system, simultaneous interpretation system, attendance registration system, multimedia control system and conference management software.
GONSIN prides itself on its independent innovation strategy and product differentiation strategy ever since its inception, with independent intellectual property rights for its wide range of products.
GONSIN successfully lauched the DSSS interpretation system, the industry's first multi-channel wireless language distribution system using the state-of-the-art Direct Sequence Spread Spectrum (DSSS) technology.
Its DSSS wireless interpretation system and wireless voting system were approved to be projects of National Torch Program by the Ministry of Science and Technology of China.
GONSIN's latest product, DCS distributed congress system, offers fully digital, scalable, versatile and reliable platform-based congress solution which has redefined the conference system, with cutting-edge technologies and greatly enhanced user experience.
GONSIN has received ISO 9001:2008 certification for its quality management system and CE, FCC, CCC certification for its product lines. GONSIN has already registered its trademarks in more than 60 countries around the world.
GONSIN has shipped to more than 130 countries, and has completed thousands of important projects worldwide, with diversified portfolio of endusers including governments, parliaments, convention centres, courthouses, military forces, hotels, schools, hospitals, churches and corporations.
GONSIN products have equipped many high-end international conferences such as the United Nations conference on LDCs, UNECSO World Heritage Committee annual session, Organization of American States general assembly, Mercosur Presidential Summit, and World Summit of Legislators.
GONSIN conference systems have been permanently installed by some national parliaments including State Great Hural of Mongolia, National Assembly of Ecuador, National Congress of Chile, National Assembly of Kenya, Parliament of the Democratic Republic of the Congo, and Congress of New Caledonia.
After nine years of rapid growth, GONSIN now employs a dedicated R&D team with the most experienced engineers covering software, chip, network and communications technology background. The company has maintained long term strategic partnerships with some well-known scientific research institutions in China. Armed with the advanced R&D, manufacturing and testing facilities, outstanding industrial design capabilities and comprehensive post-sales service, GONSIN has evolved into the world's leading supplier of high quality digital conference equipment.
"Delivering Trust & Value"is GONSIN's corporate motto. Based on mutual trust and shared interests, GONSIN will continue to work together with its clients and partners worldwide in order to actively confront new challenges of global competition and best meet growing needs of the conference industry.
Packaging & Shipping
Q1: How can Gonsin ensure product quality?
A1: Gonsin has strong R&D for product design & improve; Gonsin manufacturer department works strictly according to the technological process standards; Gonsin QC department perform strict quality test for the producing products; and before shipment, 2nd quality check will be made before delivery.
