Model NO.:
TL-VDQ5600+BJ-Q5600+TC-Q5600
Price:
USD 1.00-200.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
2000 set / Month
Country of Origin:
GUANGZHOU,SHENZHEN,HONGKONG
Stock Time:
Shipped in 5 days after payment Day
  • Place of Origin:CN;GUA
  • Simultaneous Interpretation:Yes
  • Brand Name:GONSIN
  • Function:Voting
  • Type:Audio Conference System
  • Type:Network Conference System
  • Type:Video Conference System
  • Model Number:TL-VDQ5600+BJ-Q5600+TC-Q5600



Product Description

 TL-VQ56004200

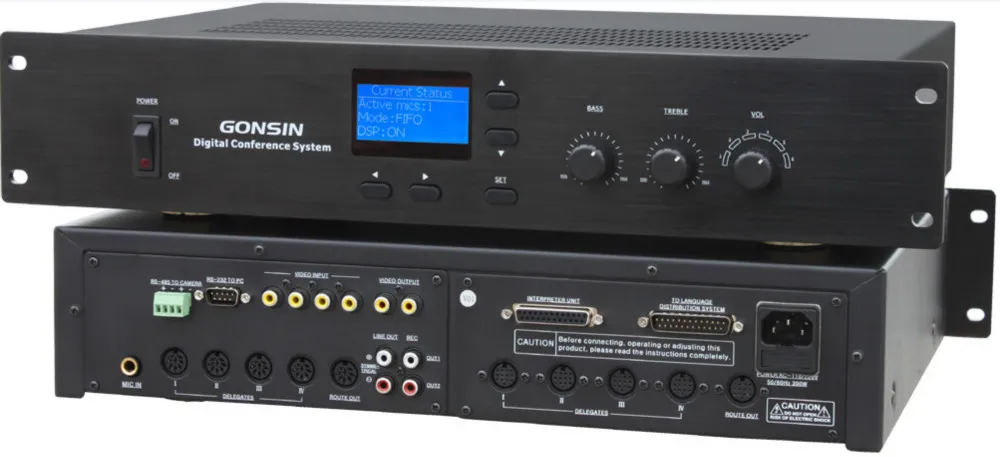

Central Control Unit  TC-ZB3


Main features in stand-alone mode:

  1 to 4 delegate microphones can be active simultaneously

  Selectable microphone mode: VOX/AUTO/FIFO/OPERATOR

  VOX sensitivity and microphone time-out can be changed

  Volume level can be adjusted for single or all loudspeakers

  ID number writing for each unit using LCD on front panel

  Automatic video tracking with preset position for panoramic view

  Built-in DSP processor for acoustic feedback prevention

  Built-in treble/bass compensation for better sound quality

Main functions under PC/software control

  Centralized conference management

  Operator can allow or reject delegate request to talk

  Speaking time limit can be preset for conference units

  Delegate unit can be set to be vice-chairman (VIP) unit

  Voting, Election, Quick Election, Evaluation

   Attendance registration using IC cards or MIC button

   Conference audio recording and video recording

Technical Specifications

 Standard 2U housing for 19"rack mounting

 Power supply for 60 conference units

 Connection of conference units in up to 4 lines

 Active delegate microphone limit:1/2/3/4

 PC communication: RS232, Ethernet

 Video camera communication: RS485

 Video camera supported: up to 4

 Video tracking protocol: Pelco-P9600 / Sony-VISCA

 AV matrix switcher input: RCA x 4 (1Vp-p, 75Ω)

 AV matrix switcher output : RCA x 2(1Vp-p, 75Ω)

 MIC IN: 6.5mm jack, 0.775V

  REC OUT audio output: 0-2.8V Vpp

 S/N ratio: -95dB

 THD:< 0.3%

 Power supply: 220V/50Hz or 110V/60Hz, ±10%

 Maximum power: 300W

 Operating temperature: 0℃ to 45℃

 Storage temperature: -20℃ to 50℃

 Dimensions (W*D*H): 485×325×90mm

 Weight: 14 kg

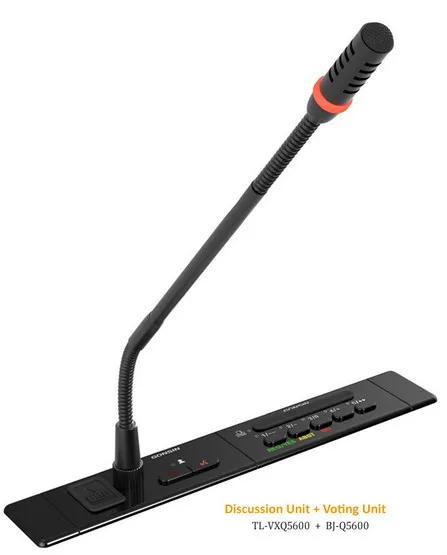

Discussion Unit TL-VDQ5600/ TL-VXQ5600


Delegate discussion unit (TL-VDQ5600) allows the delegate to talk, request to talk, and register attendance.  1 to 4 delegate microphones can be active simultaneously. Built-in loudspeaker automatically mutes when the microphone is turned on.  Chairman discussion unit (TL-VXQ5600) has the additional priority button to override all active delegate units to control the conference.  Multiple chairman and vice-chairman discussion units can be used in one system, and can be active at any time regardless of preset delegate microphone limit.

Features:

Pluggable gooseneck microphone stem

 Waterproof and dustproof design

 Long microphone pick-up range

 Red ring luminant to identify active unit

 Blue LED indicator for chairman or VIP

Basic functions:

   Microphone mode: VOX/AUTO/FIFO/OPERATOR

   Attendance: registration by keypress or late registration

   LED indicator and MIC light will blink when attendance is to be registered.  LED indicator will light on when attendance is successfully registered.

   VOX sensitivity and mic time-out are adjustable.

   Automatic video tracking, with preset position for panorama view.

Technical specifications:

  Mounting type: flush mounting

  Frequency response: 50Hz-18KHz

  Sensitivity: -46dB±4dB

  S/N ratio: -95dB

  THD:< 0.3%

  Power input: 24V

  VOX sensitivity: H/M/L (76dB/80dB/82dB)

  VOX auto mic time-out: 20-250 seconds

  Working temperature:  0℃ to 45℃

   Storage temperature:  -20℃ to 50℃

   Mic pickup range: 100-600mm

   Mic stem length: 410mm standard, 310/510mm optional

  Dimensions (WxDxH): 100x40x66mm

  Net weight: 86g

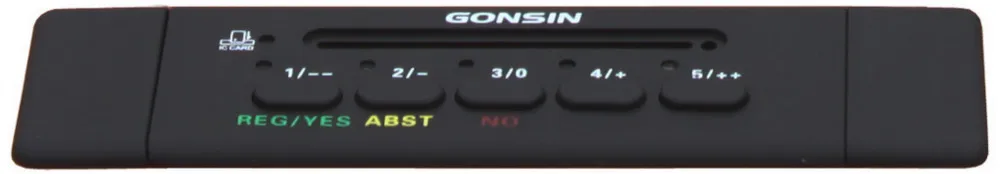

Voting Unit   BJ-Q5600




Features:

  • Simple and stylish designe
  • LED indicator to show working status for attendance and voting.
  • Voting and evaluation options are defined by system software.
  • 30000V ESD protection circuit design
  • Waterproof and dustproof desig

Technical specifications:

  • Mounting type: flush mounting
  • Powered: by the central control unit
  • Working temperature: 0℃ to 45℃
  • Storage temperature: -20℃ to 50℃
  • Dimensions (WxDxH): 100x40x66mm
  • Net weight:75g

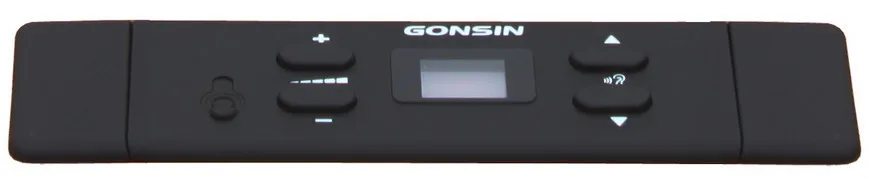

Channel Selection Unit  TC-Q5600


 The wired flush channel selection unit provides high immunity from interference and high security against unauthorized listening. Each unit comes with headphone jack and volume control so that the delegate can hear any selected channel on a personal headphone, and adjust volume level for comfortable listening.

Features:

  • Simple and stylish look
  • 30000V ESD protection circuit design
  • Waterproof and dustproof designe
    Basic functions:
  • 6 selectable channels for interpretation
  • Loudspeaker volume level can be adjusted individually, or centrally by CCU and displayed on LCD.
  • Selected channel number is shown on LCD.

 Technical specifications:

  • Mounting type: flush mounting
  • Powered: by the central control unit
  • Headphone jack: 3.5mm
  • Working temperature:  0℃ to 45℃
  • Storage temperature:  -20℃ to 50℃
  • Dimensions (WxDxH): 100x40x66mm
  • Net weight: 62g

Interpreter Console TC-F06


Technical Specifications:

 Frequency response: 50-18kHz

 Distortion at 1 kHz: < 0.1%

 Channel separation: > 85 dB

 Signal-to-noise ratio: > 90 dB

 Max. input power level: 7.5V

 Operating voltage: 24V

 Power consumption: 2.5W

 Standard microphone stem: 410 mm

 Built-in loudspeaker 8Ω/2W

 128x64 backlit LCD screen

 3/5/10m cable with DB25 connectors

 3.5mm jacks for MIC/REC/Headphone

 Dimensions: 247X145X95mm (W*D*H)

 Weight: 1.2 kg

Interpreter Headset TC-D2

 Closed-ear stereo headset with mic and vol control

 Connectors: 3.5mm stereo plugs

 Impedance: 60Ω±15%

 Frequency response: 20Hz to 20KHz

 Microphone type: Omni-directional dynamic

 Microphone sensitivity (1kHz): -58±2dB

 Cord length: 2 meters

Stereo Headphone TC-D3

 Ergonomic design

 Super heavy bass

 Frequency response: 20 Hz - 20 kHz

 Impedance: 32 ohms ±15%

 Sensitivity: 94dB ±3dB

 Maximum power input: 30mW

 Adjustable headband & soft foam ear pads

 40mm drivers for dynamic stereo sound

 120cm single entry cord with 3.5mm plug

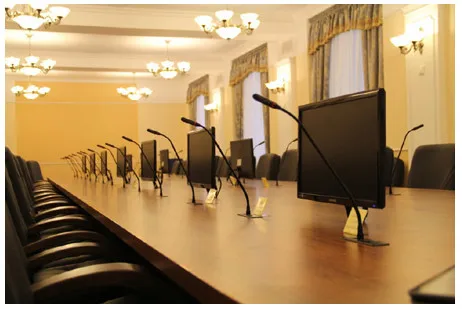

Application
