- Place of Origin:CN;GUA
- Simultaneous Interpretation:Yes
- Function:Translation
- Model Number:DCS-1021
- Brand Name:GONSIN
- Type:Audio Conference System
- Type:Network Conference System
- Type:Video Conference System
DCS-1021 Wireless Congress System
Main Features:
♦ Support 2.4 G / 5.8G dual-band communication to ensure system stability;
♦ Microphone sensitivity can be adjusted from level 0 to 4;
♦ With offline 8 in 1 out SD video tracking matrix, HD camera is supported;
♦ Terminals can be uniformly shutdown by server after the conference;
♦ With timing function, when the timing ends, the server can be used after reauthorization;
♦ System capacity can be up to 450 units of terminals;
♦ CD-quality sound;
♦ Multiple systems work simultaneously under same environment without disturbing each other.

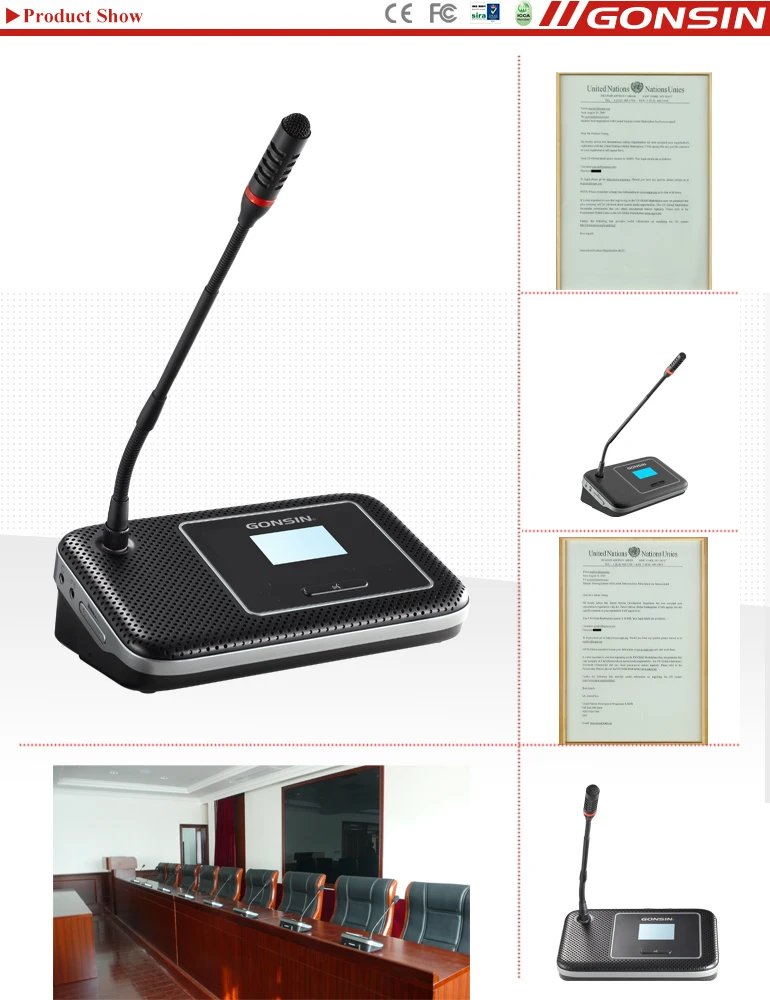

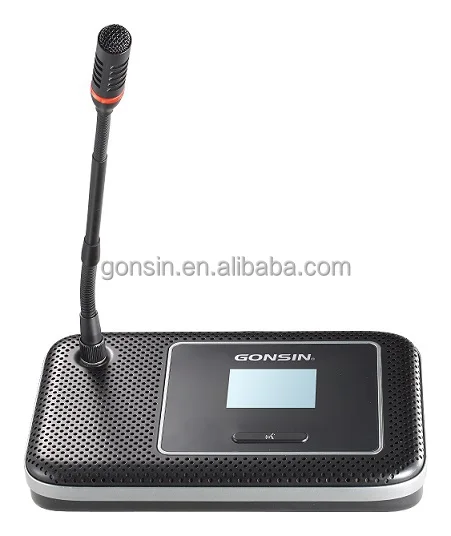

DCS-1021-W Wireless Congress Terminal
Features:
♦ Support 2.4 G/ 5.8G dual-band communication;
♦ CD-quality sound;
♦ Terminal battery duration (speaking state ≥ 14 hours);
♦ Highly resistant to mobile phone interference;
♦ Pluggable MIC stem;
♦ Metal material, high texture;
♦ Microphone sensitivity can be adjusted from level 0 to 4.
Functions:
♦ Congress terminals use dot matrix LCD to display the microphone switch status, network connecting status, ID number and battery level information and so on;
♦ Multiplexing switch microphone button to achieve long press on / off;
♦ Attendance registration: by key press or supplementary registration;
♦ With battery detection function;
♦ Low voltage warning and automatic shutdown protection function;
♦ Multiple systems work simultaneously without disturbing each other via SSID network setting;
♦ Two microphone modes: AUTO / FIFO;
♦ Removable lithium batteries for centralized charging
Technical indicators:
| Communication mode | 2.4/5.8GHz dual band |
| Frequency response | 30Hz~22KHz |
| Sensitivity | -46dB±1dB |
| Dot matrix | 128×64 LCD Backlit with white-on-blue |
| Working Voltage | 11.1V |
| Battery capacity | 3000mAH |
| Battery life | ≥14 hours (speaking state) |
| Earphone port | 3.5mm jack,MIC×2,REC×2 |
| MIC stem length | standard: 31cm |
| Base size | 212mm×139mm×67mm |
| Weight | 0.8KG |
| Operating temperature | 0~45°C |
| Storage temperature | -20~50°C |

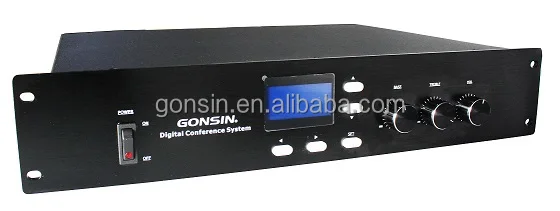

GONSIN10000S Congress Server
Features:
♦The congress server platform is based on Linux operating system, applicable for any large convention center requiring strict working conditions;
♦ Fully digital technology for audio signal processing and transmission, which complies with the IEC 60914 international standards for conference systems;
♦ High performance DSP solution optimized for digital audio processing;
♦ Unified Server Shutdown function.
Functions:
♦ Each server has a globally unique ID number ,which is easy for installation and orderly management;
♦ Supports 8 x 1 SD / 8 x 8 HD automatic camera tracking function;
♦ Two microphone modes: AUTO / FIFO;
♦ Up to 4 microphones can be active simultaneously (1 chairman terminal +1/2/3 delegate terminal);
♦ The server comes with an LCD panel and navigation buttons, which are for all function setup operation;
♦ Terminal ID number can be wrote through the server, more convenient for device management;
♦ Unified terminals shutdown function hens effectively reduce the work;
♦ Sound pickup sensitivity of the terminals can be adjusted individually or collectively via the server;
Technical indicators:
| Capacity | Single wireless AP.150Terminals;can be extended to 450 terminals with extra wireless AP |
| Frequency response | 30Hz~20KHz |
| Signal to noise ratio | ≥75dB |
| Distortion Degree | ≤0.5%(50HZ~8KHZ) |
| System stability communication distance | 30m |
| LCD panel | 128×64 dot matrix |
| Main supply | AC110~220V± 10%50~60Hz |
| Audio Output | +20dBu |
| Ports | 1×8pin(to connect interpreter console) 2×audio output 1×RJ-45(to connect a wireless AP/PC) 1×RS-232(to connect camera tracking switcher) 1×RS-485(to connect camera) |
| Mounting | 19*standard cabinet |
| Base size | 485×90×325mm (W×H×D) |
| Weight | 7.2KG |
| Operating temperature | 0~45°C |
| Storage temperature | -20~50°C |
- Project Sharing
Compared to other supplier, Gonsin have STRENGTHS below:
1.Rich project experience (we make many projects for government, parliament, university,churches, corporate conference hall ect.)
2.Short delivery period.
3.CE, FCC certified products; ISO certified manufacturer. We have strong R&Ddepartment, engineer have rich experience in the digital conference industry.
4.Professional sales team, provide professional conference system solution. We are MANUFACTURER, to ensure GOOD price, quality & service.
Q1: What's the product warranty?
A1: 3 years warranty on non-deliberate damage.
Q2: What shall I do if any product problem?
A2: Pls contact Gonsin directly by mail/phone, better provide the pictures and detailed description. Gonsin after-sales are very professional and give you helpful guidence, instruction.
Normally customer can solve the problem with our guidence.
Q3: What's Gonsin strenghs in AV industry?
A3: We are manufacturer, price and quality are very good control, so to ensure the best benifit for customers;
We are dedicated to conference system for more than 12 years, and have completed many job reference worldwide.
Our products are CE/FCC certified, and we are ISO certified factory.
Q4: How I know the updates from Gonsin?
A4: Pls visit our website www.gonsin.com
